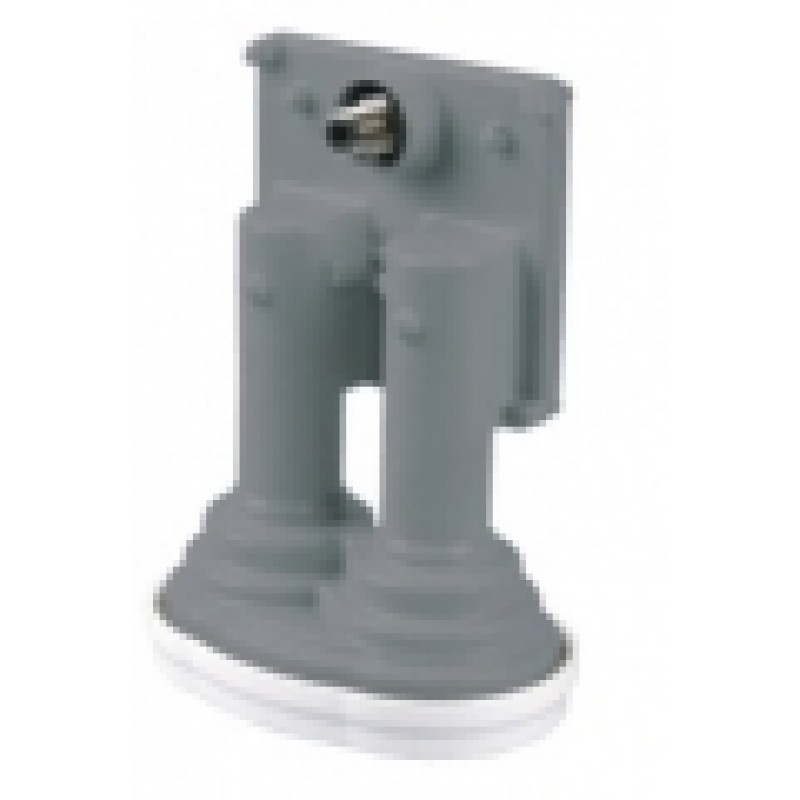

Icecrypt 3 Degree LNB

By using this LNB you can receive Hotbird ( 13east ) and Eutelsat W2 ( 16 east ) from one dish or you can receive 10 east and 13 east or 16 east and 19.2 east, all from one Dish with this one LNB. Built in diseqc switch, one simple cable from this LNB to your satellite receiver and it's plug and play setup.

Product Description

INPUT FREQUENCY                * 10.7~12.75 GHz
L.O. FREQUENCY                     * 9.75/10.6GHz ± 1 MHz
STABILITY                                   * ±2 MHz(-40 ? - +70 ?)
L.O. PHASE NOISE                   * -70 dBc/Hz@1KHz
                                                       * -90 dBc/Hz@10KHz
                                                       * -105 dBc/Hz@100KHz
OUTPUT FREQUENCY             * Low Band : 950 ~ 1950 MHz
                                                       * High Band : 1100 ~ 2150 MHz
CONVERSION GAIN                  * 6O dB (TYP)
GAIN FLATNESS                         * ±0.5 dB/36 MHz
NOISE FIGURE                           * 0.4dB
INPUT V.S.W.R                            * 2.5:1
OUTPUT V.S.W.R                        * 2.5:1
LOCAL LEAKAGE AT INPUT   -45 dBm
IMAGE REJECTION                     * 50 dB
OUTPUT POWER                        * + 5 dBm (AT 1 dB COMPRESSION)
CROSS POLAR ISOLATION      * 23dB MIN
Polarity Switching                         * 13/18V, DiSEqC 2.0
Low/High Band Switching          * 0/22 KHz, DiSEqC 2.0
SUPPLY CURRENT                    * 130 mA (MAX)
OPERATING TEMPERATURE   * -40 ? ~ +70 ?
RELATIVE HUMIDITY                  * 0%~95%
LOW/HIGH BANS SWITCHING * Low Band: 0 kHz
                                                        * High Band:22kHz ± 4kHz
IF OUTPUT CONNECTER         * "F" TYPE FEMALE*4
OUTPUT IMPEDANCE                * 75 OHMS

Warranty Information
12mth Return To Base
